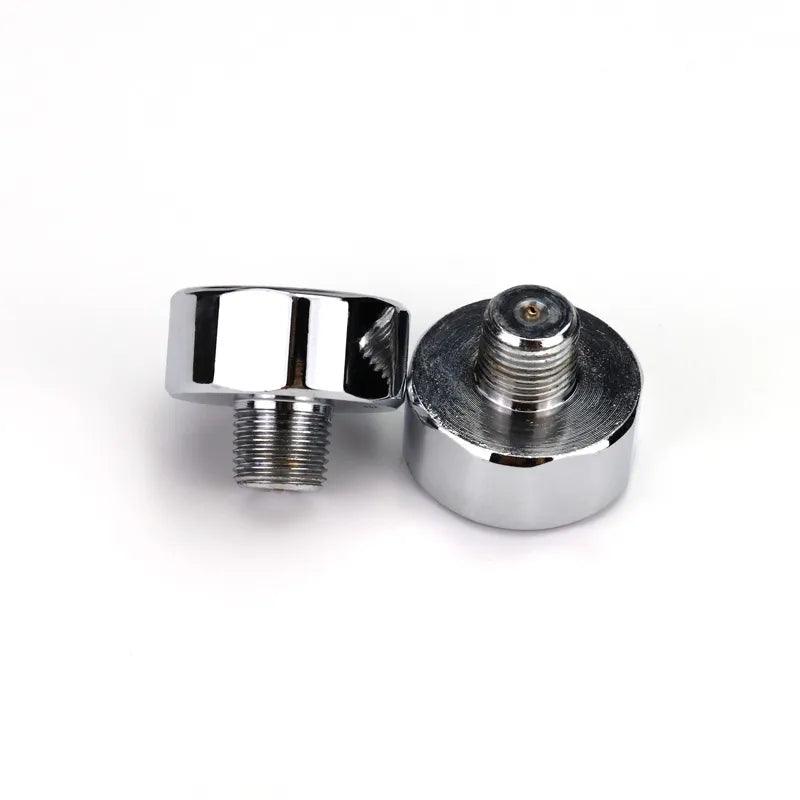

25MM PRESSURE GAUGE (300 BAR) - M8X1 THREADED
M8x1 male threaded gauge, suited for certain applications. For High Pressure Air measurement only, up to 300 BAR.
Not to be confused w/ 1/8" BSP / M10x1 thread types.
Nickel-clad exterior for corrosion resistance. Glass face w/ protective removable film layer over it.
Readings are on a white, non-luminious (GITD) backing. Indicates both BAR and PSI.
***
Technical Specifications;
Gauge face |
ø23,79mm |
Gauge face height |
11mm |
Input Threading |
7,90x1mm (M8x1) |
Thread Length |
9,36mm |
Measurement unit(s) |
BAR & PSI |
Pressure rating |
300 BAR / 4351,13 PSI |
Note: |
Seal not included, polygonal face for tool-toggling |
M8x1 male threaded gauge, suited for certain applications. For High Pressure Air measurement only, up to 300 BAR.
Not to be confused w/ 1/8" BSP / M10x1 thread types.
Nickel-clad exterior for corrosion resistance. Glass face w/ protective removable film layer over it.
Readings are on a white, non-luminious (GITD) backing. Indicates both BAR and PSI.
***
Technical Specifications;
Gauge face |
ø23,79mm |
Gauge face height |
11mm |
Input Threading |
7,90x1mm (M8x1) |
Thread Length |
9,36mm |
Measurement unit(s) |
BAR & PSI |
Pressure rating |
300 BAR / 4351,13 PSI |
Note: |
Seal not included, polygonal face for tool-toggling |
