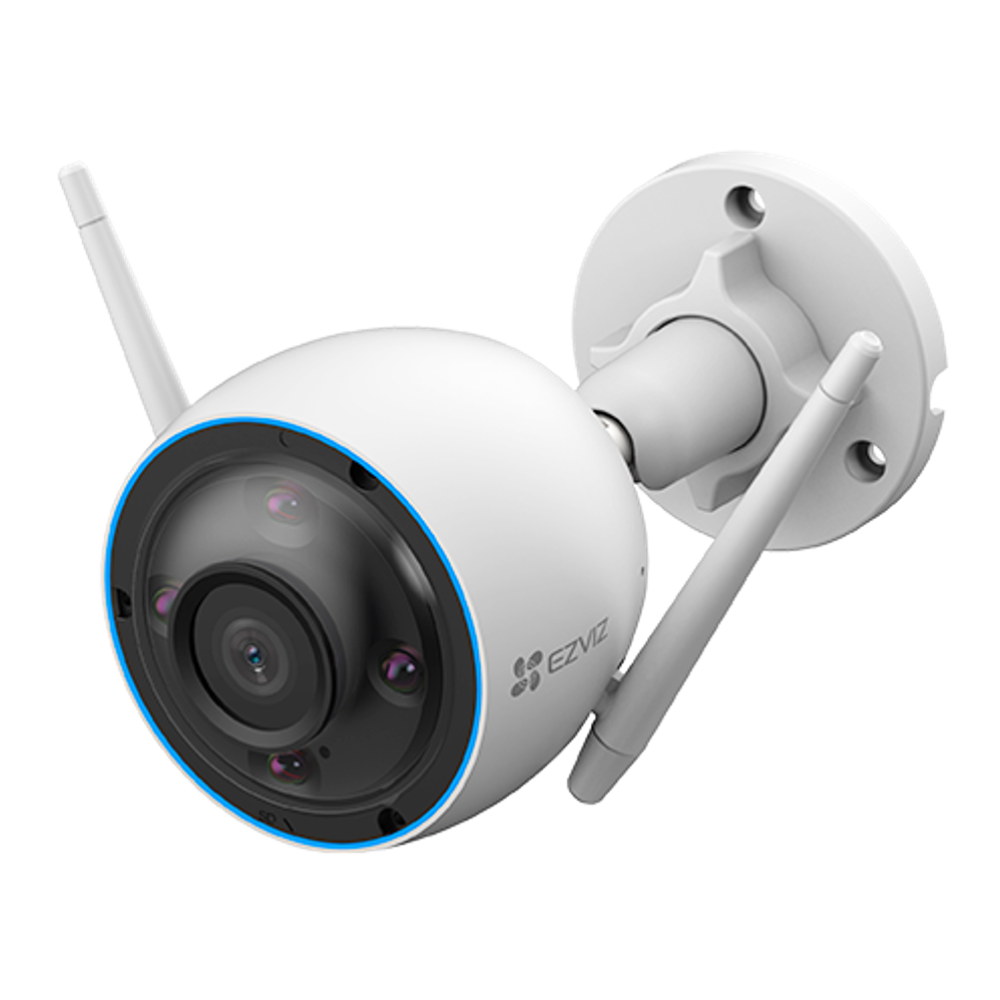

The EZVIZ H3 3MP 2K Outdoor Smart Home Camera is a weather-resistant outdoor security camera designed to provide clear surveillance and intelligent detection for homes and businesses. With a 3MP 2K resolution, wide-angle lens options, infrared night vision, and AI-powered human and vehicle detection, the H3 provides reliable monitoring day and night.
The camera connects through 2.4GHz Wi-Fi or wired Ethernet, giving you flexibility when installing it around your property. Its IP67-rated housing and wide operating temperature range make it suitable for demanding outdoor environments.
Key Features
-
3MP 2K Resolution – Captures video at up to 2304 × 1296 pixels for clear and detailed surveillance.
-

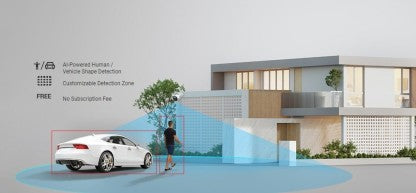

AI Human & Vehicle Detection – Helps distinguish people and vehicles from general motion.
-
Wide-Angle Viewing – Available with 2.8mm or 4mm lens options for different coverage requirements.
-
IR Night Vision – Provides infrared night vision up to 30 metres.
-
Digital WDR – Helps maintain usable images in scenes with varying levels of light.
-
3D DNR – Helps reduce image noise for clearer footage.
-
Wi-Fi & Wired Networking – Supports 2.4GHz Wi-Fi as well as 10/100M Ethernet.
-

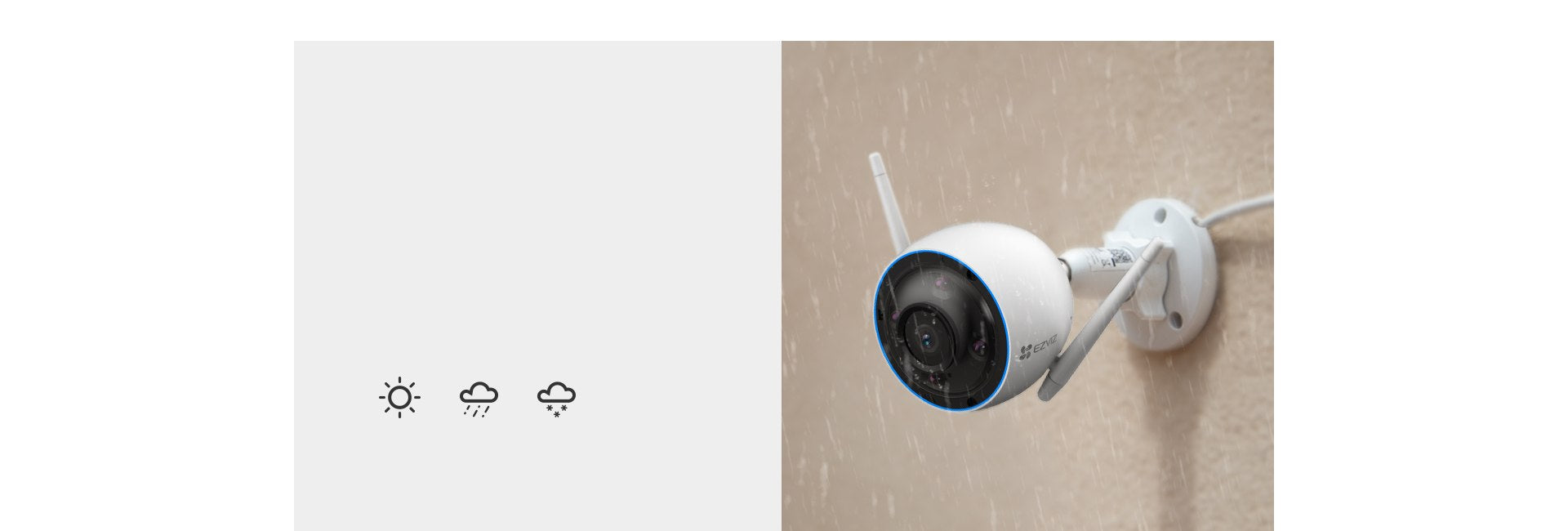

IP67 Protection – Designed to resist dust and water for outdoor installation.
-
Customised Alert Areas – Allows specific areas of the camera's view to be configured for alerts.
-
Smart Home Integration – Works with Alexa, Google Assistant, and IFTTT.
-
microSD Storage – Supports microSD cards up to 512GB.
Camera Specifications
-
Model: CS-H3-R100-1J3WKFL
-
Image Sensor: 1/2.7" Progressive Scan CMOS
-
Maximum Resolution: 2304 × 1296
-
Maximum Frame Rate: 30fps
-
Lens Options: 2.8mm @ F2.0 / 4mm @ F2.0
-
Lens Mount: M12
-
Day/Night: IR-Cut Filter with Automatic Switching
-
WDR: Digital WDR
-
DNR: 3D DNR
-
Minimum Illumination: 0.01 Lux @ F2.0, AGC ON; 0 Lux with IR
-
IR Night Vision: Up to 30m
-
Video Compression: H.265 / H.264
Lens & Viewing Angles
-
2.8mm Lens: 122° diagonal / 106° horizontal / 56° vertical
-
4mm Lens: 102° diagonal / 86° horizontal / 44° vertical
Network & Connectivity
-
Wi-Fi Standard: IEEE 802.11b/g/n
-
Wi-Fi Frequency: 2.4GHz
-
Wi-Fi Pairing: AP Pairing
-
Ethernet: 1 × RJ45 10/100M Adaptive Port
-
Smart Integration: Alexa, Google Assistant, IFTTT
Storage
-
Local Storage: microSD card up to 512GB
-
Cloud Storage: EZVIZ CloudPlay (subscription required)
Power & Construction
-
Power Supply: DC 12V / 1A
-
Power Consumption: Max. 7W
-
Wiring: Hard-Wired
-
Ingress Protection: IP67
-
Operating Temperature: -30°C to 60°C
-
Operating Humidity: Up to 95% RH, non-condensing
-
Dimensions: 75.5 × 75.5 × 155mm
-
Net Weight: 438g
Ideal Applications
- Home security
- Outdoor property monitoring
- Driveways and entrances
- Business premises
- Perimeter surveillance
- General outdoor security monitoring
What's Included
- 1 × EZVIZ H3 2K Camera
- 1 × Drill Template
- 1 × Screw Kit
- 1 × Waterproof Kit
- 1 × Power Adapter
- 1 × Regulatory Information
- 1 × Quick Start Guide
The EZVIZ H3 3MP 2K Outdoor Smart Home Camera combines high-resolution video, AI-powered detection, infrared night vision, flexible network connectivity, and IP67-rated outdoor protection, making it a practical security solution for reliable day-and-night property monitoring.
