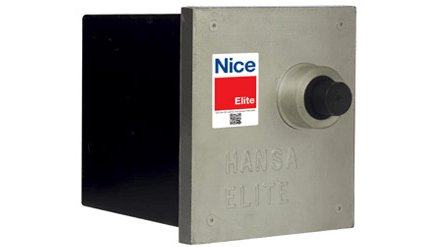

ET ELITE 24V HEAVY DUTY SWING GATE MOTOR
This heavy-duty swing gate motor is suitable for both residential and industrial gates with up to 4m gate leaves. It features a powerful operator, a soft start/stop function, and an LED display for monitoring the gate motor's status.
Additional features include a general purpose relay, battery backup, loop detector capability, and an A.S.A.P mode for quick auto-closing of the gate. For added security, the optional plug-in receiver uses ET-Blu Mix® enhanced rolling code technology that is uncrackable and unhackable. Other functions include a lip feature for smooth operation.
SPECS:
Input voltage: (Standard kit option)
230v AC, 50Hz-60Hz
Primary supply to the electric motor
ACDC Power Pack with battery as back-up only (24V, 7Ah
Maximum duty cycle (work rate) with mains present
30 cycles/hour*
Number of operations on battery reserve without AC mains present
30 within the first 24h of power failure
Maximum gate mass
600kg (<2.7m leaf)
Maximum gate leaf length
4m (<350kg mass)
Rated force
160Nm
Rated linear running speed: †
N/A
Typical operating time through 90˚**
<16 seconds
Built-in receiver
434MHz, 2 channel, ET BLU MIX® Enhanced rolling code. 999 user standard capacity (SMXI)
