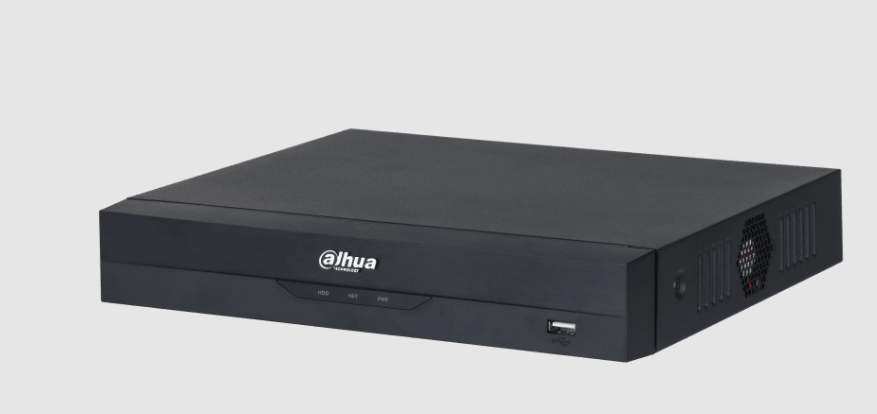

DAHUA 8CH WIZSENSE COMPACT POE NVR
Dahua Technology's Wiz Sense line offers a wide range of AI-driven products and solutions featuring powerful independent AI chips and advanced deep learning algorithms. With an impressive focus on human and vehicle detection, this product boasts exceptional accuracy and enables fast responses to identified targets.
Leveraging Dahua's expertise, Wiz Sense aims to provide intelligent, user-friendly, and comprehensive solutions. This AI network video recorder is a budget-friendly option, offering features such as live viewing, multi-screen display, real-time local storage, easy mouse operation, and remote management and control.
Perfect for entrance/exit face detection and recognition, as well as perimeter protection for people and vehicles.
New User InterfaceLocal and web interfaces adopt the new UI 4.0 style which caters tousers habits. Functional modules are divided more clearly and easier tounderstand.Decoding (Smart H.265+/Smart H.264+)Dahua smart encoding (H.265+/ H.264+) is the optimizedimplementation of (H.265/H.264) codec that uses a scene-adaptivecode rate control algorithm, providing more efficiency in the encodingprocess and higher video quality, and reducing the cost of storageand transmission significantly. This NVR supports the correspondingdecoding.
SMD PlusSMD Plus, referred to as Smart Motion Detection Plus, which is anupgrading version of SMD that greatly improves the alarm accuracy byloading deep-learning algorithm. It analyzes person and vehicle shapesbased on motion detection and sends alarms only when person orvehicle intrudes.Face DetectionFace detection is to detect if there is any human face appearing in thevideo. This technology adopts a deep learning algorithm to support facedetection, tracking, optimization and capturing, and then output thebest face snapshot.Face RecognitionFace recognition is to figure out the captured face with target features,and compare them with the face database to identify the personnel.Perimeter ProtectionBased on the deep learning algorithm, perimeter protection providesaccurate human and vehicle classification detection. It greatly reducesfalse alarms by smartly detecting behaviors such as tripwire andintrusion according to the detected object in restricted areas (e.g., forhuman or vehicle) .
FEATURES:
· New 4.0 user interface· Remote surveillance, live view and video play on mobile phone App· Max. decoding capability: 6 × 1080p@30 fps. Supports adaptive decoding· Supports mainstream cameras of ONVIF and RTSP protocols· H.264/.H265/Smart H.264+/Smart H.265+/MJPEG, H.265 auto switch· 1 VGA/1 HDMI simultaneous video output by default, the maximumresolution of HDMI is 4K; and non-simultaneous video output is alsosupported, the maximum resolution is 1080p· 1-channel face detection and recognition (AI by NVR); or 2-channelperimeter detection (AI by NVR); or 4-channel SMD (AI by NVR); up to10 face databases and 5,000 face images· Security baseline 2.1
SPECS:
System
Main Processor
Industrial-grade embedded processor
Operating System
Embedded Linux
Operation Interface
Web/operating in local GUI
Video
Access Channel
8 channels
Network Bandwidth
200 Mbps for access, 200 Mbps for storage and 100 Mbps for forwarding
Resolution
12M/8M/5M/4M/3M/2M/720p/D1
Decoding Capability
AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps
AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps
Video Output
1 VGA/1 HDMI simultaneous video output by default, the maximum resolution of HDMI is 4K
Multi-screen Display
1/4/8/9
Third Party Camera Access
Onvif, RTSP
Compression
H.264/.H265/Smart H.264+/Smart H.265+/MJPEG
Audio
PCM/G711A/G711U/G26/AAC
Network
Network Protocol
HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS
Mobile Phone Access
Android, iOS
Interoperability
ONVIF (profile T/profile S/profile G), CGI, SDK
Browser
Chrome, IE9 or above, Firefox
Record Playback
Multi-channel Playback
Up to 8 channels playback
Record Mode
Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
Storage
Local HDD and network
Backup
USB device
Playback Function
1. Play, pause, stop, fast forward, fast backward, rewind, play by frame
2. Full screen, backup (cut/file), partially enlarge, audio on/off
SMD Plus
Performance
4 channels
AI Search
Search by target classification (human, vehicle)
Face Recognition
Max 8 face pictures/sec processing
1 channel video stream face recognition
Stranger Mode
Detect strangers' faces (not in device's face database). Similarity threshold can be set manually
Up to 8 target face images search at same time, similarity threshold can be set for each target face image
Database Management
Up to 10 face databases with 5,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture
Database Application
Each database can be applied to video channels independently
Trigger Events
Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
Alarm Linkage
Video recording, snapshot, log, preset, tour
Perimeter Protection
2 channels
Object classification
Human/Vehicle secondary recognition for tripwire and intrusion
Alarm
General Alarm
Motion detection, privacy masking, video loss, PIR alarm, IPC alarm
Anomaly Alarm
Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
External Port
HDD
1 SATA port, up to 8 TB. The maximum HDD capacity varies with environment temperature
USB
1 front USB 2.0 port, 1 rear USB 2.0 port
HDMI
1
VGA
1 RJ–45 port (10/100/1000 Mbps), 8 RJ–45 ports with PoE power supply (10/100 Mbps)
RCA Input
RCA Output
General Parameter
Power Supply
DC 53V, 1.8A
Power Consumption
Total output of NVR is ≤ 10W (without HDD)Total output power of PoE is 72W, the maximum output power of a single port is 25.5W
Net Weight
0.92 kg (2.03 lb)
Gross weight
2.07 kg (4.56 lb)
Product Dimensions
260mm × 232.7mm × 47.6mm (W × L × H)10.24 inch × 9.16 inch × 8.77 inch (W × L × H)
Package Dimensions
117 mm × 373 mm × 307 mm (W × L × H)4.61 inch × 14.69 inch × 12.09 inch (W × L × H)
Operating Temperature
-10°C to +55°C (+14°F to +113°F)
Storage Temperature
0°C to +40°C (+32°F to +104°F)
Operating Humidity
10%–93%
Storage Humidity
30%–85%
Operating Altitude
3000 m (9843 ft)
Installation
Desktop mounting
Certifications
CE/FCC
