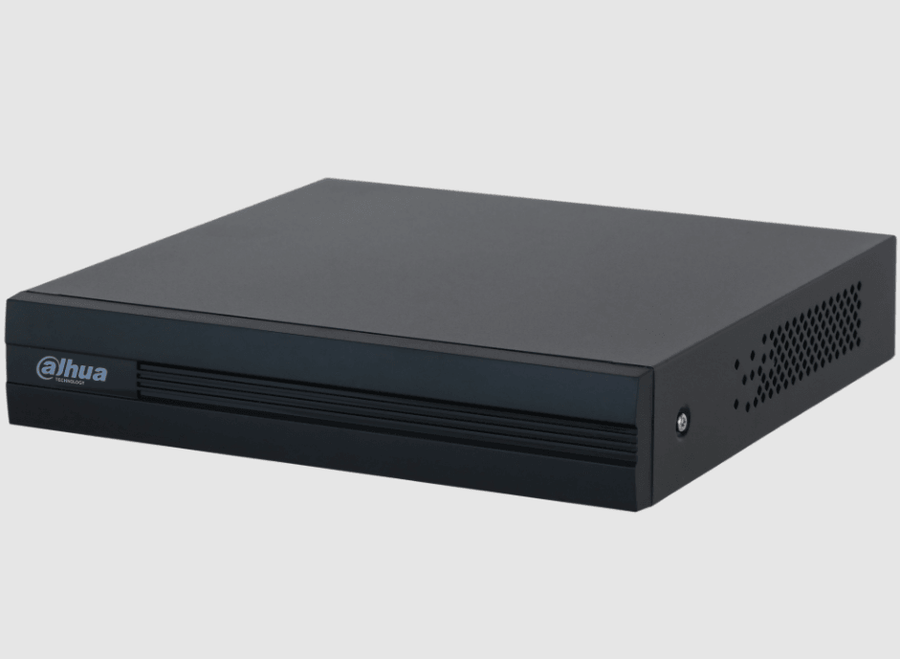

DAHUA 8CH COOPER PENTA-BRID DVR 1080P
WizSense, a range of AI products and solutions launched by Dahua Technology, utilizes an independent AI chip and deep learning algorithm. With a focus on human and vehicle identification, it boasts high accuracy and empowers users to quickly respond to defined targets. Leveraging Dahua's cutting-edge technologies, Wiz Sense offers intelligent, user-friendly, and inclusive options for customers.
Dahua Technology, a global leader in video-centric smart IoT solutions and services, introduced its new Cooper-I series of XVRs, featuring advanced SMD Plus technology for improved AI capabilities (The number of channels varies depending on the model. Please refer to the specifications below for specific channel information.).
This series was developed to decrease false alarms and reduce the need for human surveillance, providing exceptional value to customers seeking precise human/vehicle detection to enhance the security of both indoor and outdoor environments.
SMD PlusWith intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Smart Dual LightWith Smart Dual Light technology, you can select Smart Illumination Mode for the system to automatically switch between IR mode and white light mode. It allows white light to be turned on when a target is detected by the SMD Plus/Perimeter Protection function of AI-enabled XVR. This significantly reduces light pollution at night. Together with other modes, including IR Mode and White Light Mode, the smart dual light technology can meet the requirements of a wide variety of scenes.
One-click Arming/DisarmingWith just one click, you can enable or disable alarm linkages to show messages, send emails, output audio alarms and more, through the mobile app and platform.Customizable Alarm AudioDesigned for your convenience, the TiOC alarm can be customized to meet your needs. It is flexible, allowing you to directly upload your customized audio through the mobile app and XVR.AI CodingCompared with H.265/H.264, AI coding can reduce more than 50% bit rate and storage requirements without loss of decoding compatibility, providing clear human and vehicle details.Audio over CoaxThe integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.
FEATURES:
SPECS:
System
Main Processor
Industrial-grade processor
Operating System
Embedded Linux
Operating Interface
Web; Local GUI
SMD Plus
SMD Plus by Recorder
4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input
8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input
1. CVI: 1080p@25/30 fps; 720p@25/30 fps.
2. TVI: 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input
Up to 10 channels of IPC access
2 IP channels by default + 8 channels (analog channels are converted to IP channels)
Incoming bandwidth: 40 Mbps, recording bandwidth: 40 Mbps and outgoing bandwidth: 40 Mbps
*After IP extension is enabled, the AI Function (SMD) will be disabled.
Encoding Capacity
Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps)
Sub stream: CIF@(1 fps–7 fps)
Dual-stream
Yes
Video Bit Rate
32 kbps–4096 kbps
Audio Sampling
8 kHz, 16 bit
Audio Bit Rate
64 kbps
Video Output
1 HDMI, 1 VGA
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display
When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
Third-party Camera Access
Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Compression Standard
Video Compression
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression
G.711a; G.711u; PCM
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access
iOS; Android
Interoperability
ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK
Browser
Chrome; IE; Safari; Edge; Firefox
Recording Playback
Record Mode
General; alarm; motion detection
1/4/9
Backup Method
USB device and network
Playback Mode
Instant playback; general playback; event playback; tag playback; smart playback
Alarm
General Alarm
Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm
Anomaly Alarm
Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent Alarm
Alarm Linkage
Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
Ports
Audio Input
1-channel RCA
8-channel BNC (Coaxial Audio)
Audio Output
Two-way Talk
Yes (share the same audio input with the first channel)
Disk Interface
1 SATA port, up to 6 TB. This limit varies depending on the environment temperature.
USB
2 (2 rear USB 2.0 ports)
HDMI
1
VGA
Network Port
1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply
12 VDC, 1.5 A
Power Consumption
<7 W (without HDD)
Net Weight
0.56 kg (1.24 lb)
Gross Weight
0.96 kg (2.10 lb)
Product Dimensions
197.0 mm × 202.9 mm × 41.5 mm (7.76" × 7.99" × 1.63") (W × D × H)
Packaging Dimensions
332.0 mm × 64.0 mm × 240.0 mm (13.07" × 2.52" × 9.45") (W × D × H)
Operating Temperature
–10 °C to +45 °C (+14 °F to +113 °F)
Storage Temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity
10%–90% (RH), non-condensing
Installation
Desktop
Certifications
CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
FCC: 47 CFR Part 15, Subpart B
