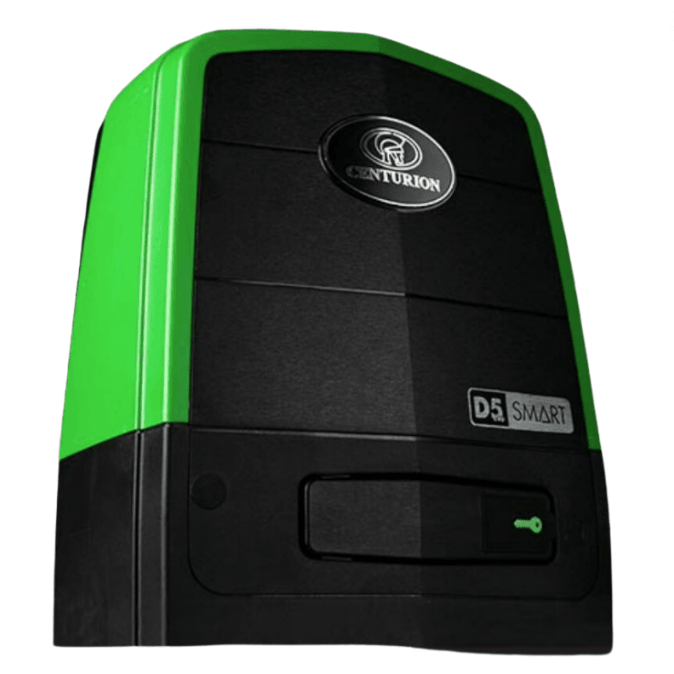

Experience the next level of centurion motor gate innovation with the D5 Evo SMART. Redesigned from the iconic Centurion D5 Evo, this motor maintains its reputation for reliability and performance while integrating award-winning technology to provide a smarter and more secure experience.
The D5 Evo SMART is more than just an upgrade, it's a true evolution. It maintains the legendary strength and dependability of its predecessor, but now includes intelligent features that give you complete control. With easy smartphone access, advanced diagnostics for peace of mind, and reliable battery-powered technology that ensures protection in power outages, this gate motor has it all.
- WHAT'S INCLUDED:
FEATURES:
SPECS FOR CENTURION D5 EVO SMART :
Centurion D5 Evo Smart
Input voltage (1)
110V - 240V AC 50/60Hz (1)
Current consumption (mains)
320mA peak
Dx12V Battery charger current output
1.8A @ 14.3V +/- 5% (28W)
Maximum number of operations per day
150 (3,6)
Duty cycle - Mains present (2,3)
50%
Motor power supply
Battery-driven (Standard Capacity - 1x12V)
Current consumption (motor at rated load)
15A
Input / Output sink currents (Max. accessory current draw)
I/O 4 and I/O 5
100mA (12V)
O6
3A (12V) 10sec Pulse
Fuse Protection
Type | Rating
Main Control Card
Serviceable | 35A
Aux. Supply
Resetable Fuse | 12V 600mA (10sec Pulse)
Charger (Mains Supply)
Non-serviceable | 3A slow-blow
Motor push force - starting
30kgf
Motor push force - rated
17kgf
Gate mass - maximum
500kg
Gate length - maximum
20m
Gate speed (varies with load) (4)
Maximum: Up to 24m/min Rated: Up to 19m/min
Manual Override
Lockable with key release
Operations whilst in Battery backup mode with 7.2Ah Battery
Operating Modes | Up to 24m/min 7kgf | Up to 18m/min 17kgf
Half day (5,6,8)
90 | 44
Full day (5,6,8)
70 | 35
Collision Sensing
Electronic
Onboard receiver type
Code-hopping multichannel receiver with selective add and delete
Receiver code storage capacity
1500 Remotes (7)
Receiver frequency
433.92MHz
Degree of protection
IP55
Mass of unit packed (with standard kit, but excl. Rack and Battery)
7.1kg
Packaging dimensions (with standard kit, but excl. Rack and Battery)
325mm wide x 245mm deep x 395mm high
Need to add a remote? No problem! Browse our Remotes collection
